LED INDUSTRIAL INDOOR LIGHTING
LED lighting, or light emitting diode lighting, is a type of solid-state lighting (SSL) that uses diodes to produce light. LEDs are more energy efficient, durable, and versatile than other light sources, such as incandescent and compact fluorescent (CFL). LEDs are also directional light sources, meaning they emit light in a specific direction.
Round LED High Bay
- UFO/Round Style
- Selectable Wattage / Static Wattages Available
- CCT Selectable / Static (3000K,3500K,4000K,5000K CCT options offered in 3 CCT ranges typically)
- 120-277v and 480v
- 0-10v Dim
- Sensor quick ports for Networked Lighting Controls and Basic Controls
- Battery back up available
- NSF / IP65 Ratings available
LED Linear High Bay
- Linear/Square/Rectangle
- Selectable Wattages / Static Wattages ( Usually higher wattage capacity than round high bays )
- CCT Selectable / Static CCT (3000K,3500K,4000K,5000K CCT options offered in 3 CCT ranges typically)
- 120-277v and 480v
- 0-10v Dim
- Sensor quick ports for Networked Lighting Controls and Basic Controls
- Battery back up available
Lensed Strips
- 24" , 36", 48", 96" Standard Body Sizes
- Selectable Wattages / Static Wattages
- CCT Selectable / Static CCT (3000K,3500K,4000K,5000K CCT options offered in 4 CCT ranges typically)
- 120-277v and 347-480v 0-10v dimmable
- Sensor quick ports and factory installed options for Networked Lighting Controls and Basic Controls
- Battery Back Up available

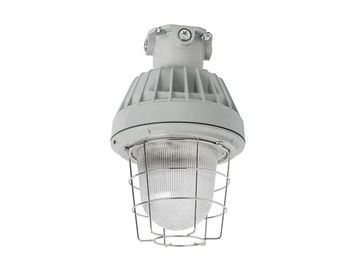

LED Harsh Enviornment and explosion Proof Lighting
Class I: Includes flammable gases, vapors, or liquids that may ignite if they come into contact with electrical sparks or open flames Class II: Includes combustible dusts Class III: Includes ignitable fibers or flyings

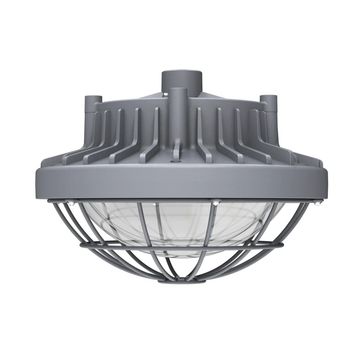

High Bays / Low Bays
- Static Wattage
- Static CCT
- Low bay design, Class 1 Divison 2, Group A B C D, Class 2, Division 2, Group F and G, Class 3, hazardous environment.
- LED: LM80 certified, high efficacy, low decay, long lifespan.130 lm/W ±5, up to 10400lm.
- Lens -tempered glass shock & vibration resistant, Super clear,>90% light transmit.
- IP66 RATED. Housing - Aluminum alloy.
- 6KV Surge Protection
Linear Lights
- Static Wattage
- Static CCT
- Low-profile, lightweight design
- Heavy-duty, 1/8″ thick body
- 3/4″ NPT hubs
- Three cable entry points
- Toolless, cage-clamp terminal block
- Captive junction box cover and hardware
- Field replaceable LED circuit boards and drivers
- Impact resistant polycarbonate lens
Outdoor Lighting
- Static Wattage
- Static CCT
- Single-pin quick disconnect mount with double acme thread
- Component access via single set screw
- Field-replaceable LED circuit boards and drivers with quick disconnects
- Wireless electromechanical terminal block
- Supplemental 10kV surge protection
- Standard, angle and high-bay reflector options available
- Pendant, ceiling, wall, stanchion and trunnion-mounting options
- Optional stainless steel guard
Manufactures and specifications of fixtures vary.
